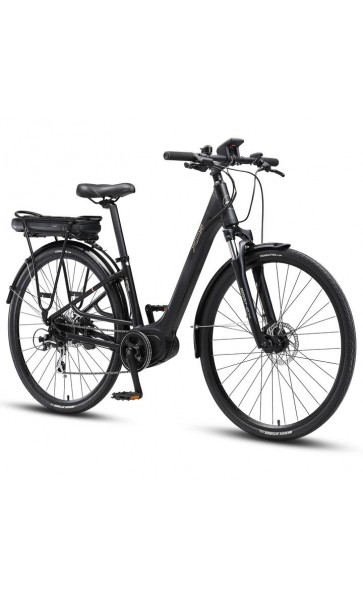

XDS Electric E-SPRESSO GS
Availability:
SPECIFICATIONS
| FRAME SIZES | 15", 17" |
| FRAME | XDS 700C Alloy Unisex |
| FORK | SR Suntour SF16-NEX Alloy Suspension Forks, 700C Ø28.6 × Ø25.4 × Ø30 × 249mm Threadless W/Lock Out and Preload Adjuster, T:63mm |
| HANDLEBAR | XDS Alloy 620mm 6° Ø31.8 |
| GRIPS | Rubber 130cm |
| STEM | XDS Alloy Threadless Ø28.6mm E:80mm H:41mm 7° Ø31.8mm |
| SEATPOST | XDS Alloy Micro Adjust Ø31.6 × 350mm |
| SEAT CLAMP | Alloy Quick Release |
| SADDLE | YBT Black |
| PEDALS | FP 9/16", Plastic |
| GEAR SHIFTERS | Shimano Acera ASLM360RAT Rapid Fire Plus 8-SPD |
| REAR DERAILLEUR | Shimano Acera ARDM60SGSL |
| FRONT BRAKES | Tektro Hydraulic Disc Brake F/R:TR160-8 (Ø160mm) |
| REAR BRAKES | Tektro Hydraulic Disc Brake F/R:TR160-8 (Ø160mm) |
| BRAKE LEVERS | Tektro Alloy Brake Levers |
| FREEWHEEL | Shimano Cassette 11-34T 8-SPD Index |
| CHAINWHEEL & CRANKS | Bafang Alloy Black 3/32" x 38T, 170mm Black Alloy Cranks |
| CHAIN | KMC 1/2" × 3/32" × 112L |
| CHAINGUARD | Integrated |
| BOTTOM BRACKET | Integrated |
| HEADSET | Alloy Ø28.6 × Ø44-Ø55 × Ø39.8mm 15.4mm H:21.8mm |
| FRONT HUB | Alloy Black, 14G × 32H, M9 × 100 × 108mm,Quick Release |
| REAR HUB | Alloy Black, 14G × 32H, M10 × 135 × 145mm |
| SPOKES | Stainless Steel, 14G |
| TYRES | KENDA 700C × 38C A/V |
| TUBE | 700C × 38C A/V |
| RIM | XDS Alloy 700C × 32H A/V |
| MUDGUARDS | Alloy, Silver |
| BELL | Plastic W/Alloy Cap |
| KICKSTAND | Steel 40mm L:300mm |
| ELECTRICAL COMPONENTS | |
| MOTOR | Bafang MAX-01, 36V/250W, Limit 25km/h, CL:49mm, W/Controller, W/Battery Communication, AU |
| BATTERY | Phylion, CB5A0181 36V/11Ah, 2200mAh Cell, W/Intelligent Protection Board, W/Communication |
| DISPLAY | Bafang LCD Display, DC 36V, 0-5 Modes, UART Communication, W/Walk Boost, W/ Light Switch |
| CHARGER | Phylion GS CE 100-240V 1.6A (MAX) 50/60HZ Output:42V 2A AU |
| SENSOR | Bafang Sensor, 1 Pulse, 5V, 500mm |
| GEARSENSOR | Included |
| MOTOR CABLE | Bafang 1000mm |
